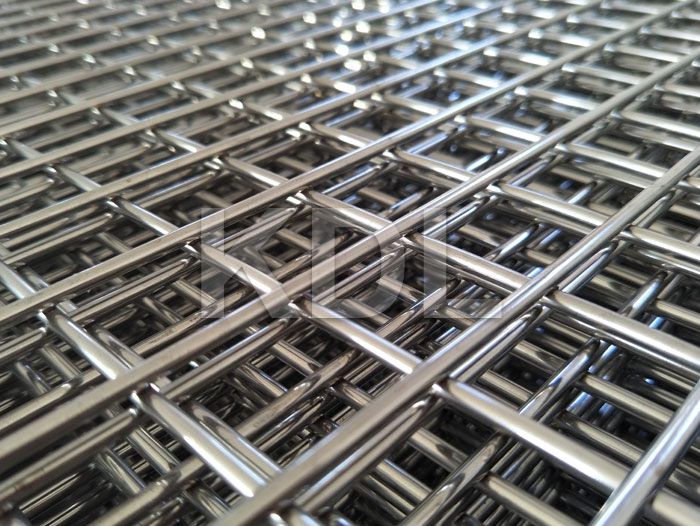

Welded Wire Mesh
In industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence panels, cage and etc.
Product description
What kind of welded wire mesh we can do?
Welded mesh rolls, metal mesh welded panels, PVC coat welded wire mesh, galvanized welded mesh, mild steel welded net, Stainless steel welded netting.
Welded Mesh Specification:
Welded Mesh rolls | ||||
Specification in British System Width 2’ to 7’ length 10’ to 300’ | Packing DIA mm | |||
Mesh | BWG | Mesh(mm) | Gauge(mm) | |
1”*2” | 14 | 25.4*50.8 | 2.10 | 390 |
1”*2” | 15 | 25.4*50.8 | 1.82 | 380 |
1”*2” | 16 | 25.4*50.8 | 1.65 | 360 |
1”*2” | 17 | 25.4*50.8 | 1.47 | 310 |
1”*1” | 14 | 25.4*25.4 | 2.10 | 400 |
1”*1” | 15 | 25.4*25.4 | 1.82 | 370 |
1”*1” | 16 | 25.4*25.4 | 1.65 | 330 |
1”*1” | 17 | 25.4*25.4 | 1.47 | 320 |
1”*1” | 18 | 25.4*25.4 | 1.24 | 280 |
1”*1” | 19 | 25.4*25.4 | 1.06 | 255 |
3/4”*3/4” | 16 | 19.05*19.05 | 1.65 | 350 |
3/4”*3/4” | 17 | 19.05*19.05 | 1.47 | 330 |
3/4”*3/4” | 18 | 19.05*19.05 | 1.24 | 290 |
3/4”*3/4” | 19 | 19.05*19.05 | 1.06 | 260 |
3/4”*3/4” | 20 | 19.05*19.05 | 0.88 | 240 |
1/2”*1” | 17 | 12.7*25.4 | 1.47 | 335 |
1/2”*1” | 18 | 12.7*25.4 | 1.24 | 300 |
1/2”*1” | 19 | 12.7*25.4 | 1.06 | 265 |
1/2”*1” | 18 | 12.7*12.7 | 1.24 | 300 |
1/2”*1” | 19 | 12.7*12.7 | 1.06 | 275 |
1/2”*1” | 20 | 12.7*12.7 | 0.88 | 250 |
1/2”*1” | 21 | 12.7*12.7 | 0.81 | 230 |
1/2”*1” | 22 | 12.7*12.7 | 0.71 | 215 |
1/4”*1/4” | 23 | 6.35*6.35 | 0.63 | 215 |
3/8”*3/8” | 21 | 9.35*9.35 | 0.81 | 250 |
